We are an eminent Manufacturer and exporters of Process Control Instruments. Our Quality Instrumentation Products have already remained TIME PROVEN.

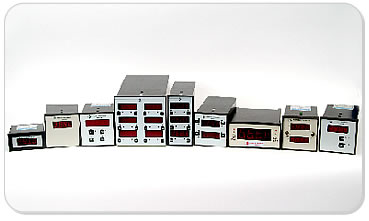

Predefined I/P Indicators & Controllers-801

products
7614
( 72*72, 2 C/O type )

products
7615
( 96*48, 2 C/O type )

products
7610
( 48*96, 2 C/O type )

products
C-0580
( 96*96, 4 digit, 0.5” )

products
7652
( 96*96 , 4 C/O type )

products
DSC00364
( Wall mount, JUMBO 4” size )

products
 C-0566
( Din rail mounted )

products
C-0572
( Din rail mounted )

products
C-0567
( 48*96, Bargraph type )

products
C-0579
( 96*96, Bargraph type )

products
DSC00391
( in FLP enclosure )

spadcerpdfspadcerrequest

  • Rugged and Time proven designs.
  • Predefined type inputs.
  • Supports wide input types & ranges
  • 2/3/4 digit displays available.
  • Display size upto 16 with Optional Bargraph.
  • Gives max. 4 on/off outputs.
  • Retransmission output on PV.
  • Transmitter P.S. @ 24V DC.
  • Various sizes / Mountings / Enclosures supported.

MODEL 801 – PROCESS INDICATOR / CONTROLLER

( Predefined Input and Predefined Ranges type )



Introduction
Pantech's Signal Indicator cum Controller, model 801 is an ideal instrument for providing indication as well as controlling set points to various processes. It is designed to accept various process inputs (Current, Voltage, RTD, and Thermocouple) however one at a time, display the same and generate potential free contacts when abnormal conditions occur. The model is also equipped with an optional analog output facility (Isolated or non-isolated).
Model 801 is an analog electronics based controller. It is capable to display the process value to the resolution of maximum 3 ½ digits and can be designed to generate maximum of 4 nos. of potential free contacts. A further virtue of the controller is that alarms can be field configurable (i.e. HIGH “or” LOW) and adjustable. Hystresis (deadband) can be varied from 1% to 15% of span. It is also facilitated with internal transmitter power supply of 24 V DC, to power up two-wire transmitters. Option of a bargraph display is also available in these modules, however no. of LEDs in the bargraph varies according to the size and mounting of the instrument. Note that the instrument is NOT configurable by front keys as other microprocessor models are. The user is required to calibrate, change the display range and etc. works by varying potentiometers, dip switches etc. on PCB levels.
Low drift precession components are used for long term accuracy of the instruments. All instruments undergo a burn-in for better reliability.The instrument is available in different formats and sizes. Information regarding specification and size is given below.


Specifications

Input ( Predefined type )
  • Current, 4 20 mA DC/ 0 20 mA DC
  • Voltage, 1 5 V DC/ 0 10 V DC
  • RTD Pt 100
  • T/C Type J, K, R, S, T.
  • Specials ( on factory confirmations )
  Input impedance

200 KΩ for Voltage, mV & T/C inputs
250 Ω for current inputs

Cold junction compensation

Built in for T/C input.

  Alarms

Maximum 4 nos. of potential free contacts.

Analog output
  • Isolated / Non Isolated 4 20 mA DC
  • Isolated / Non Isolated 0-10 V DC
  • Other types on factory confirmations
  Analog output load capability

800Ω maximum for 4-20 mA DC

Output accuracy

+/- 0.1% of span

  Display resolution

2/3/3.5 digit type

Display accuracy

+/- 0.1% of span

  Transmitter power

24 V DC for current inputs
10/12 V DC ( in case of Load cell / Proximity application ) Specials

Power supply
  • 24 V DC
  • 110 V AC, 50 Hz, +/- 10%
  • 230 V AC, 50 Hz, +/- 10%
  • 90-270 V AC SMPS
  • Specials on factory confirmations
  Contact ratings

230 V AC, 5 Amps.

Power consumption

6 VA max.

  Ambient temperature

0 50Ω C.

Storage temperature

0 70° C.

  Humidity

90% RH (non-condensing)

Enclosures

Weatherproof Panel mounted
Field mounted WP/IP65/Flameproof
Specials

  Mounting

Panel / Wall / Field / Dinrail / Eurocard /



SPECIALS
  • Following table describes the availability of several models with the company right now. A general preview is only presented to the user. The dimensional and display sizes are the relational virtues of each other and hence the user is always requested to clarify the specifications of instrument with the factory prior to placement of the order.
  • On confirmation with factory, changes of all types in all specifications is possible.

Model Mounting & Dimension in mm (H * W) mm Inputs Power Alarms Analog output mA or V or specials Bargraph (BG) availability Display resolution Display size ( standard types )
Isolated Non isolated
801 Panel 96”*96 72*144 144*72 All All Max. 4 Yes Yes Yes(21 led) 3 ½ max. with BG
0.25/0.5/0.8/1 “
48*96 96*48 All All Max.2 No Yes No 3 ½ max.
0.25/0.5 “

48*48 1,2,3 24 V DC Nil Nil Nil Nil 3 ½ ¼”
DIN 70*100 max All All Max.4 No No No 3 ½ max. ¼” size
Euro Std. or As req All 24V DC Max.2 No No No 3 max. ¼” size
Wall As required or Optimum possible All All Max. 4 Yes Yes No 3 ½ max. All Upto 2”/4”…16” size
In case the qty. permits, the instruments can be taken to the customized requirements. Contact factor for confirmation
Note :
  1. The user should opt for this model only if there remains LEAST possibility of change in INPUT / DISPLAY and other related specifications of the instrument. These instruments are of the type : FIT IT and FORGET IT. The stable electronics assures years of consistent run, once preliminary specification cares are taken for.
  2. The user cannot configure the instrument IN ANY MEANS to change its input types. This can be done at factory only.
  3. Calibration, Display range, Hysterisis, Alarm type – are the configurations that the user can perform by varying JUMPER, DIP SWITCHES, POTENTIOMETERS on PCB level. The instrument has to be definitely opened up for this purpose and some trained technician has to perform this job.

Ordering Information


Please confirm the availability of the model by cross checking the table mentioned on the backside.



FOR INDICATORS, MODEL NO. shall remain in the following format




Basic Model No. (Specified by first 3 digits) 801 - Signal Ind. cum Controller

Predefined type inputs

Predefined type ranges

Analog type digital elect.



Power Option (Specified by the next digit / letter )

1 - 24 V DC

2 - 110 V AC

3 - 230 V AC

4 - 90-270 V AC – SMPS

S - Specials

Enclosure / Mounting (Specified by letter following 3 digits)

P - Weatherproof - Panel

R - Weatherproof -Din Rail

E - Weatherproof - Euro card

W - Weatherproof - Wall

F - Flame proof – Wall / Field

I - IP65 grades – Wall / Field

S - Specials



Alarms Option (Specified by the next digit / letter)

0 - None

1 - 1 no. of alarm

2 - 2 no. of alarms

3 - 3 no. of alarms

4 - 4 no. of alarms

Input (Specified by first digit following the letter) 1 - mA DC signal input

2 - V DC signal input

3 - RTD type

4 - T/C J type

5 - T/C K type

6 - T/C R type

7 - T/C S type

8 - T/C T type

S - Specials




Analog O/P Option (Specified by the next digit / letter)

0 - None

1 - mA/V DC isolated

2 - mA/V DC non-isolated

S - Specials

Bargraph Option (Specified by the next digit / letter)

0 - None

1 - YES



Display Resolution (Specified by the next digit / letter)

0 - No Display i.e BLIND type

Controller only

1 - 2/3 digit

2 - 3.5 digit
