- Rugged & Time Proven Designs
- Microprocessor type and Fully Configurable
- Accepts UNIVERSAL inputs only ( mA/V /Pulse )
- Relay ON/OFF outputs on FLOW RATE
- Retransmission output on FLOW RATE
- FLOW RATE to the resolution of 4/4.5 digits
- 8 digit TOTALIZER capacity
- Optional Engineering Unit display
- Transmitter P.S. @ 24 V DC or as required
- Various sizes / Mountings / Enclosures supported
- RS485 based Communication output provided
|
|
| |
| Model 854U
FLOW INDICATORS / CONTROLLERS � Single & Universal input type
( Microprocessor based & Fully configurable ) |
| |
| Introduction
|
| |
|
Pantech Instrument’s Model 845U represents FLOW INDICATORS / TOTALIZERS / CONTROLLERS for flow applications where single flow signal is available. However the instrument allows the user to select this single input from an option list of other linear inputs. Based on the flow application and the type of flow data signal, hence this model can be used in VOLUMETRIC and MASS flow measurements, both. The instrument accepts any predefined linear type of signal, and converts it into INSTANTANEOUS FLOW RATE to a resolution of 4/4.5 digits. TOTALIZED value is displayed through 8 digits red LED and this totalizer value is always protected against power failures through internal memory structures of microprocessor. Optionally the instrument is designed to give two contact relay outputs and a RETRANSMISSION ISOLATED signal on INSTANTANEOUS FLOW RATE. Serial communication outputs for computer system interfaces are also given optionally. The user is allowed to feed in : INPUT TYPE, FLOW RANGE, COUNTS/Hr., FLOW TYPE and all other related parameters by front four keys only. All configurations, calibrations and output fine tunings etc. can be performed by front four keys only without opening the instrument. In the core of all the functions lies the latest and highly proven microprocessor based chipsets. The high end softwares ensure the most user friendly interactions by the user. The instrument incorporates low drift operational amplifiers and industrial grade components for long trouble free operation. Burn in of each module ensures long trouble free operations.
Model 845V :
-
Is to be used when a single flow signal input is there. Application can be a VOLUMETRIC / MASS type, depending upon the system design and type of flow transmitter signal output.
-
However the user in this model is allowed to select the input type from the list mentioned below.
-
User is allowed to feed in - FLOW RANGE for display, COUNTS/Hr., FLOW TYPE, FLOW RANGE again for RETRANSMISSION. For Pulse input, user has to feed in K factor.
-
In case the user wishes to calculate MASS FLOW with three inputs of : FLOW, PRESSURE, TEMP., then the user should look out for our model no. : 845G, 845N, 845S.
|
| |
| Specifications |
| |
|
Input ( UNIVERSAL i.e all of below )
Current – 4-20 mA / 0-20 mA DC
Voltage – 0-10 V DC / 1-5 V DC
Pulse ( Open Collector type )
* User needs to select any one of above
* Other type on Factory Confirmation
Calculations possible for FLOW RATE
Square root
Linear
* Both options configurable by front keys
Analog output
-
Isolated / Non Isolated 4 – 20 mA DC
-
Isolated / Non Isolated 0-10 V DC
-
Other types on factory confirmations
4-20 mA DC o/p load @ 800 ohms
Contact output
Maximum 2 sets of C,NC,NO on FLOW RATE
Serial output / MODEM CONNECTIVITY
-
RS232 With modbus RTU or ASCII protocol
-
RS485 with modbus RTU or ASCII protocol
-
Modem connectivity with central software
-
GSM (Mobile) connectivity
Display (any one type)
-
4 digit red LED for Instant flow rate, 4 digit green LED for Engg. Unit display, 8 digit red LED for totalized value ( LED size : 0.25” ) ( Engg. Units selectable )
-
4.5 digit red/green LED instant flow ( LED size : 0.5” ) & 8 digit red LED totalized ( LED size : 0.25” )
-
LCD display
Accuracy
+/-0.1% of span
Transmitter Power
24 V DC @ 40 mA
Other types on factory confirmations
|
|
Power supply
-
24 V DC
-
110 V AC, 50 Hz, +/- 10%
-
230 V AC, 50 Hz, +/- 10%
-
90-270 V AC – SMPS type
-
Specials on factory confirmations
Backup
Zero power RAM provided backup for data
Power consumption
6 VA max.
Ambient temperature
0 – 50 °C.
Storage temperature
0 – 70 °C.
Humidity
90% RH (non-condensing)
Security
Single level – Password protected
Enclosures
Weatherproof, Flameproof and all other standard types
Mounting
Panel / Wall / Field
Dimensions
96*96 / 72*144 / 144*144 / SPECIALS
*All config/calibration from front keys only
-
Following table describes the availability of several models with the company right now. A general preview is only presented to the user. The dimensional and display sizes are the relational virtues of each other and hence the user is always requested to clarify the specifications of instrument with the factory prior to placement of the order.
-
On confirmation with factory, changes of all types in all specifications is possible
|
|
| |

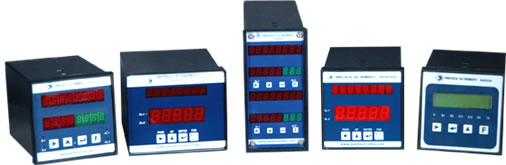

Model |
Mounting & Dimension in mm (H * W * D) |
Input |
Power |
Output option |
Indication Options |
Display size |
Analog output |
Contact output |
Display resolution |
Counter resolution |
845U |
Panel |
72*72*150 |
All |
All |
Yes |
Yes |
4/4.5 digit |
8 digit |
¼” size |
96*96*150 |
All |
All |
Yes |
Yes |
4/4.5 digit |
8 digit |
½“- ¼” size |
144*72*150 |
All |
All |
Yes |
Yes |
4/4.5 digit |
8 digit |
½”- ¼” size |
144*144*150 |
All |
All |
Yes |
Yes |
4/4.5 digit |
8 digit |
½” size |
Wall |
Opttimum |
All |
All |
Yes |
Yes |
4/4.5 digit |
8 digit |
4” size |
|
| |
| |
| Ordering Information |
| |
|
Please confirm the availability of the model by cross checking the table mentioned on the backside. |
|
Basic Model No. (Specified by first 3 digits)
845U - Single input type
Flow Indicator Totalizers
Mounting & Encl. (Specified by letter following 3 digits)
P - Weatherproof - Panel
W - Weatherproof - Wall
F - Flameproof - Wall / field
I - IP65 grade – wall / field
S - Specials
Input (Specified by first digit following the letter)
1 - UNIVERSAL
S - Special input
Power option (Specified by the next digit / letter)
1 - 24 V DC
2 - 110 V AC
3 - 230 V AC
4 - 90-270 V AC – SMPS type
S - Specials
Analog O/P Option (Specified by the next digit / letter)
0 - None
1 - mA/V DC isolated
2 - mA/V DC non-isolated
S - Special
|
|
Contact output option (Specified by the next digit / letter)
0 - None
1 - 1NO + 1NC on flow
-
- 2NO + 2NC on flow
Display Resolution (Specified by the next digit / letter)
1 - 4 digit instantaneous
4 digit for Eng.units
8 digit totalizer
2 - 4.5 digit instant. Flow
8 digit totalizer
3 - LCD
** Please mention the color of displays clearly
Serial output (Specified by the next digit / letter)
0 - None
1 - RS232 With modbus RTU
2 - RS485 with modbus RTU
3 - Modem connectivity
4 - GSM connectivity |
|
| |
|
** Customized developments can be made if the quantity permits |
| |
 |
|
